S P E C I F I C A T I O N :

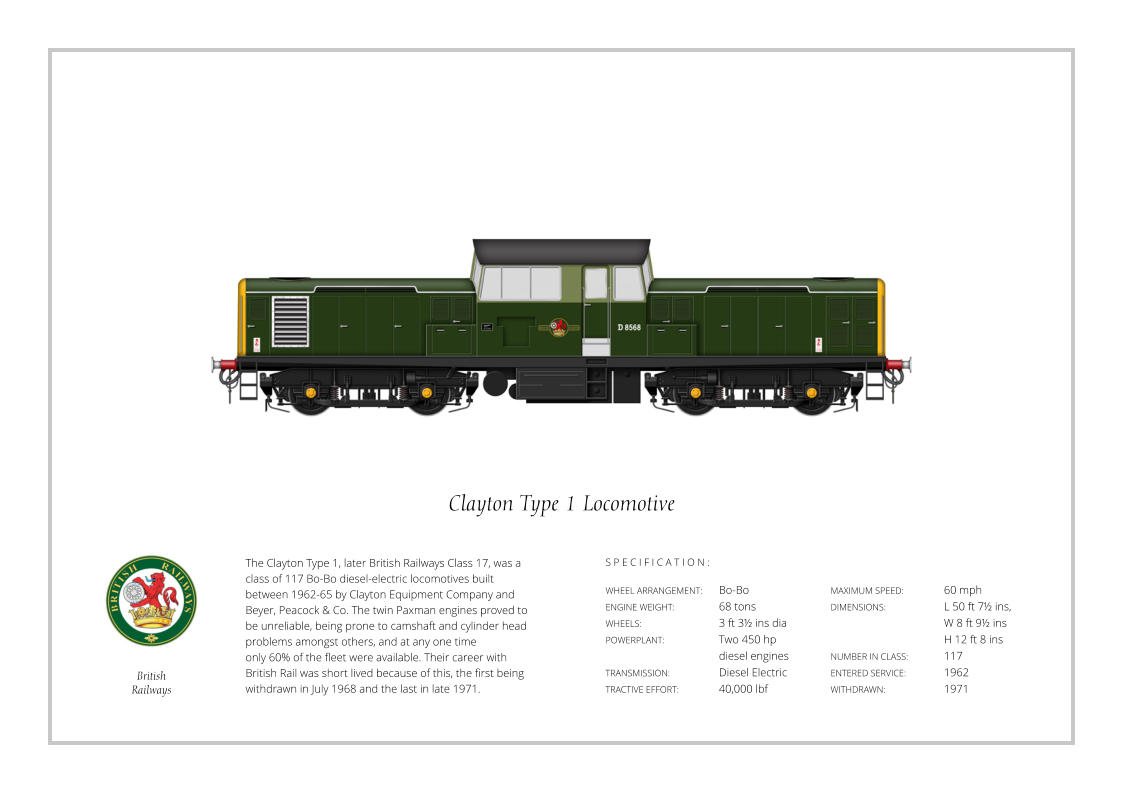

The Clayton Type 1, later British Railways Class 17, was a class of 117 Bo-Bo diesel-electric locomotives built between 1962-65 by Clayton Equipment Company and Beyer, Peacock & Co. The twin Paxman engines proved to be unreliable, being prone to camshaft and cylinder head problems amongst others, and at any one time only 60% of the fleet were available. Their career with British Rail was short lived because of this, the first being withdrawn in July 1968 and the last in late 1971. WHEEL ARRANGEMENT: Bo-Bo ENGINE WEIGHT: 68 tons WHEELS: 3 ft 3½ ins dia POWERPLANT: Two 450 hp diesel engines TRANSMISSION: Diesel Electric TRACTIVE EFFORT: 40,000 lbf MAXIMUM SPEED: 60 mph DIMENSIONS: L 50 ft 7½ ins, W 8 ft 9½ ins H 12 ft 8 ins NUMBER IN CLASS: 117 ENTERED SERVICE: 1962 WITHDRAWN: 1971 S P E C I F I C A T I O N : Clayton Type 1 Locomotive British Railways

The D1/3 Class diesel shunters were built by Ruston and Hornsby Company and were specifically designed to work dockside tramways for the Eastern Region of British Railways. With only a 5 ft 6 inch wheelbase they could work the tight curves and awkward areas of the East Anglian dock systems. They were withdrawn in 1967 as part of a purge of non standard shunters, One being cut up in 1968 while the other was sold for industrial use before being scrapped in 1983. WHEEL ARRANGEMENT: 0-4-0 ENGINE WEIGHT: 28 tons WHEELS: 3 ft 4 ins dia POWERPLANT: One 165 hp diesel engines TRANSMISSION: 4 speed gearbox TRACTIVE EFFORT: 14,350 lbf MAXIMUM SPEED: 14 mph DIMENSIONS: L 20 ft 10 ins, W 8 ft H 12 ft 2 ins NUMBER IN CLASS: 2 ENTERED SERVICE: 1956 WITHDRAWN: 1968 S P E C I F I C A T I O N : D1/3 Class Diesel Shunter British Railways

The North British Type 1 (later known as Class 16) were ordered under British Railways' 1955 Modernisation Plan. They were intended primarily for local freight traffic. Ten were built but were not a success, problems with their Paxmen engines causing them to have a high failure rate. Being a non-standard design and unreliable, they were an obvious candidate for early withdrawal which was carried out between February and September 1968, all ten being cut up for scrap by the end of 1969. WHEEL ARRANGEMENT: Bo-Bo ENGINE WEIGHT: 68 tons WHEELS: 3 ft 7 ins dia POWERPLANT: One 800 hp diesel engine TRANSMISSION: Diesel Electric TRACTIVE EFFORT: 42,000 lbf MAXIMUM SPEED: 60 mph DIMENSIONS: L 42 ft 6 ins, W 8 ft 8½ ins H 12 ft 8 in NUMBER IN CLASS: 10 ENTERED SERVICE: 1958 WITHDRAWN: 1968 S P E C I F I C A T I O N : Class 16 Diesel Locomotive British Railways

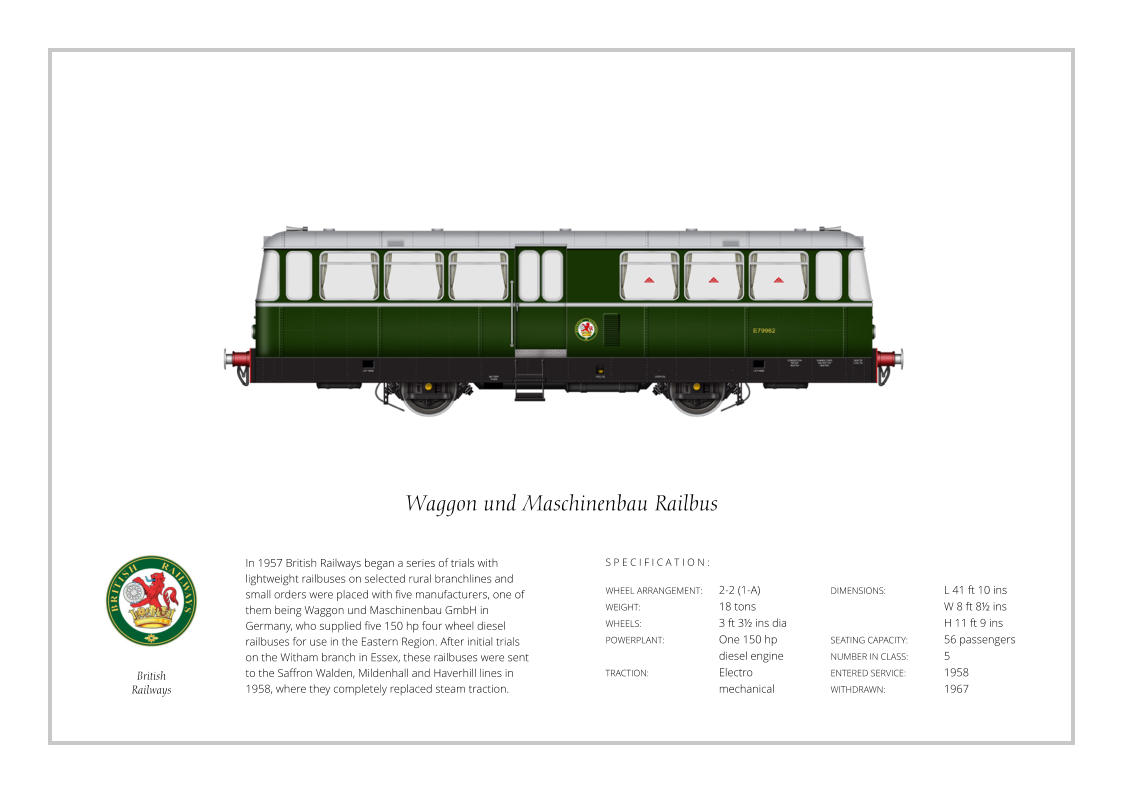

In 1957 British Railways began a series of trials with lightweight railbuses on selected rural branchlines and small orders were placed with five manufacturers, one of them being Waggon und Maschinenbau GmbH in Germany, who supplied five 150 hp four wheel diesel railbuses for use in the Eastern Region. After initial trials on the Witham branch in Essex, these railbuses were sent to the Saffron Walden, Mildenhall and Haverhill lines in 1958, where they completely replaced steam traction. WHEEL ARRANGEMENT: 2-2 (1-A) WEIGHT: 18 tons WHEELS: 3 ft 3½ ins dia POWERPLANT: One 150 hp diesel engine TRACTION: Electro mechanical DIMENSIONS: L 41 ft 10 ins W 8 ft 8½ ins H 11 ft 9 ins SEATING CAPACITY: 56 passengers NUMBER IN CLASS: 5 ENTERED SERVICE: 1958 WITHDRAWN: 1967 S P E C I F I C A T I O N : Waggon und Maschinenbau Railbus British Railways

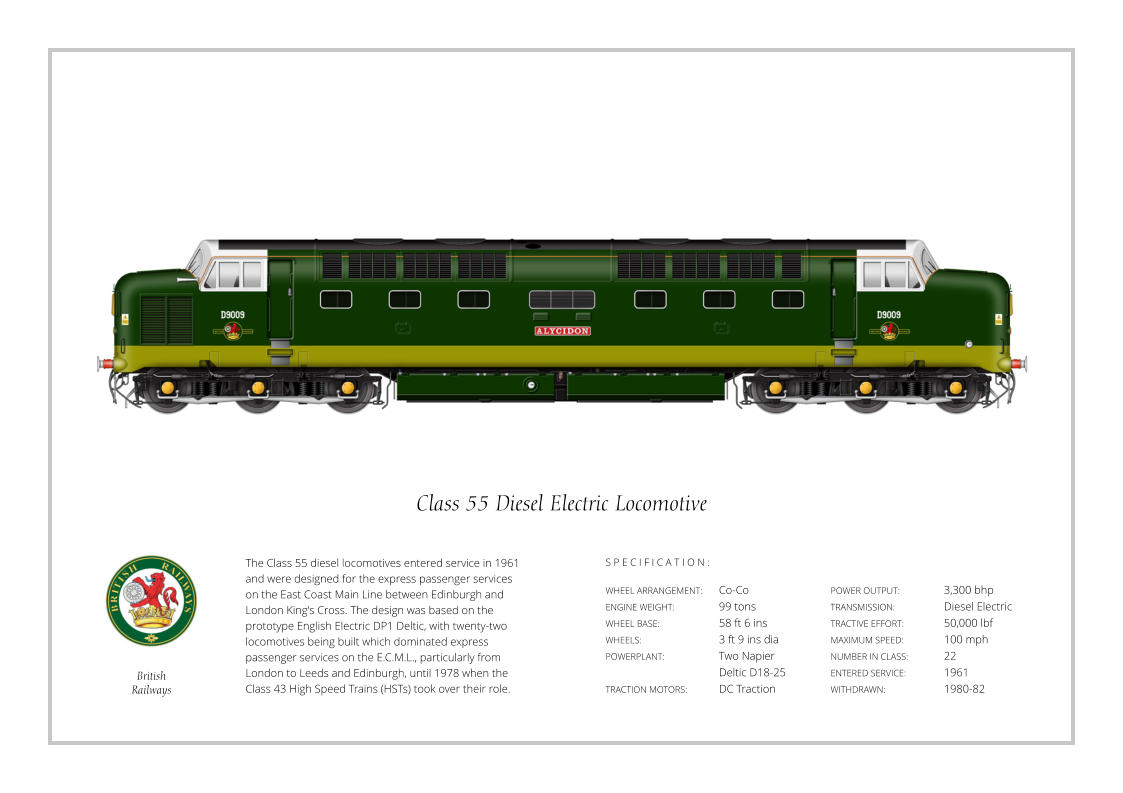

The Class 55 diesel locomotives entered service in 1961 and were designed for the express passenger services on the East Coast Main Line between Edinburgh and London King's Cross. The design was based on the prototype English Electric DP1 Deltic, with twenty-two locomotives being built which dominated express passenger services on the E.C.M.L., particularly from London to Leeds and Edinburgh, until 1978 when the Class 43 High Speed Trains (HSTs) took over their role. WHEEL ARRANGEMENT: Co-Co ENGINE WEIGHT: 99 tons WHEEL BASE: 58 ft 6 ins WHEELS: 3 ft 9 ins dia POWERPLANT: Two Napier Deltic D18-25 TRACTION MOTORS: DC Traction POWER OUTPUT: 3,300 bhp TRANSMISSION: Diesel Electric TRACTIVE EFFORT: 50,000 lbf MAXIMUM SPEED: 100 mph NUMBER IN CLASS: 22 ENTERED SERVICE: 1961 WITHDRAWN: 1980-82 S P E C I F I C A T I O N : Class 55 Diesel Electric Locomotive British Railways

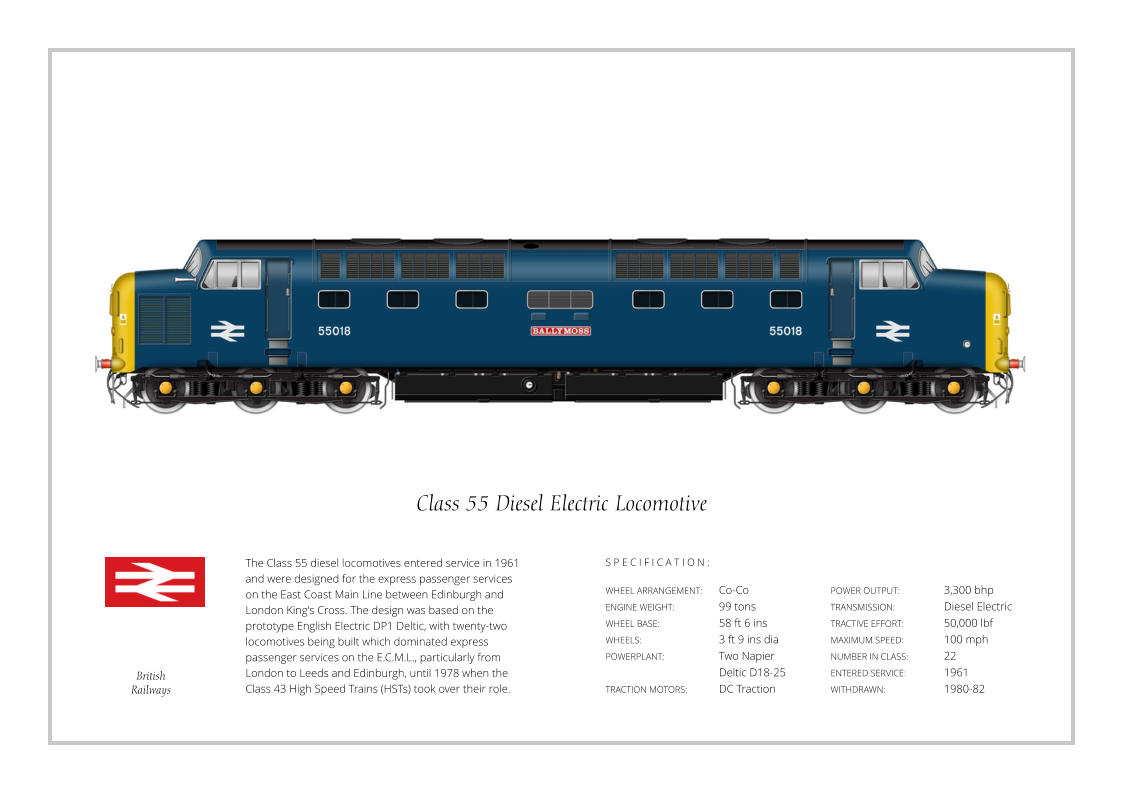

The Class 55 diesel locomotives entered service in 1961 and were designed for the express passenger services on the East Coast Main Line between Edinburgh and London King's Cross. The design was based on the prototype English Electric DP1 Deltic, with twenty-two locomotives being built which dominated express passenger services on the E.C.M.L., particularly from London to Leeds and Edinburgh, until 1978 when the Class 43 High Speed Trains (HSTs) took over their role. WHEEL ARRANGEMENT: Co-Co ENGINE WEIGHT: 99 tons WHEEL BASE: 58 ft 6 ins WHEELS: 3 ft 9 ins dia POWERPLANT: Two Napier Deltic D18-25 TRACTION MOTORS: DC Traction POWER OUTPUT: 3,300 bhp TRANSMISSION: Diesel Electric TRACTIVE EFFORT: 50,000 lbf MAXIMUM SPEED: 100 mph NUMBER IN CLASS: 22 ENTERED SERVICE: 1961 WITHDRAWN: 1980-82 S P E C I F I C A T I O N : Class 55 Diesel Electric Locomotive British Railways

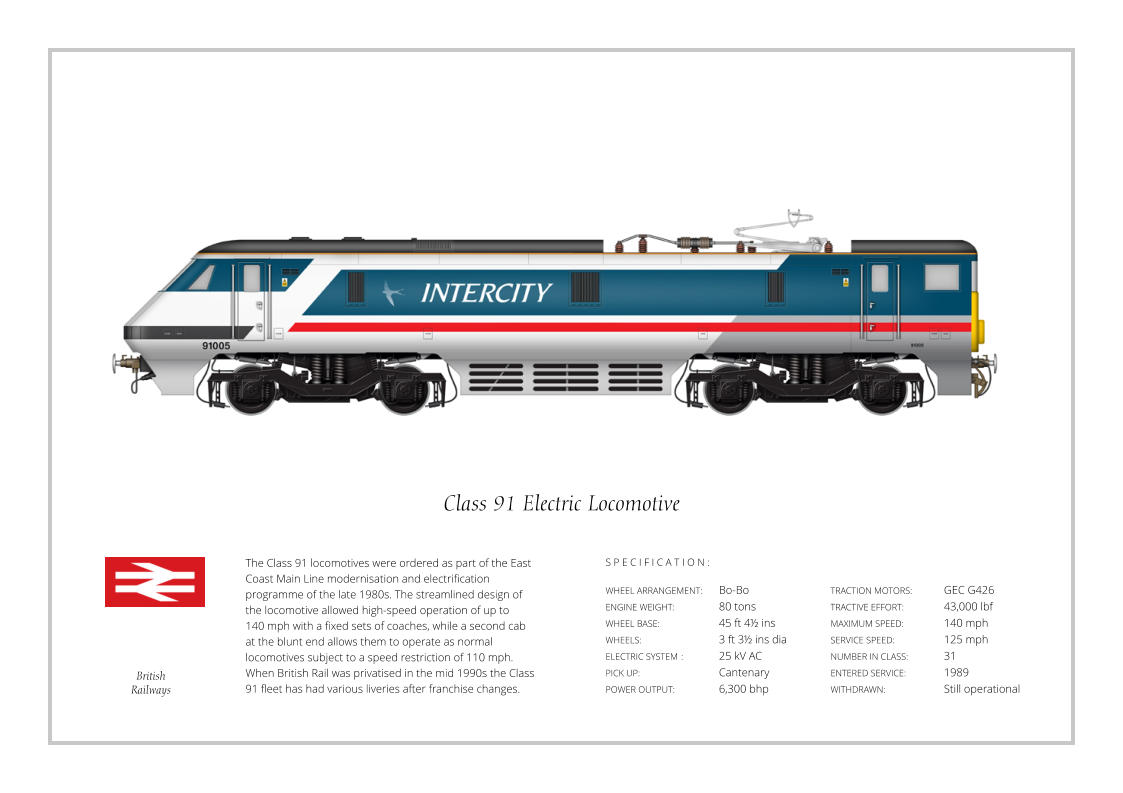

The Class 91 locomotives were ordered as part of the East Coast Main Line modernisation and electrification programme of the late 1980s. The streamlined design of the locomotive allowed high-speed operation of up to 140 mph with a fixed sets of coaches, while a second cab at the blunt end allows them to operate as normal locomotives subject to a speed restriction of 110 mph. When British Rail was privatised in the mid 1990s the Class 91 fleet has had various liveries after franchise changes. WHEEL ARRANGEMENT: Bo-Bo ENGINE WEIGHT: 80 tons WHEEL BASE: 45 ft 4½ ins WHEELS: 3 ft 3½ ins dia ELECTRIC SYSTEM : 25 kV AC PICK UP: Cantenary POWER OUTPUT: 6,300 bhp TRACTION MOTORS: GEC G426 TRACTIVE EFFORT: 43,000 lbf MAXIMUM SPEED: 140 mph SERVICE SPEED: 125 mph NUMBER IN CLASS: 31 ENTERED SERVICE: 1989 WITHDRAWN: Still operational S P E C I F I C A T I O N : Class 91 Electric Locomotive British Railways

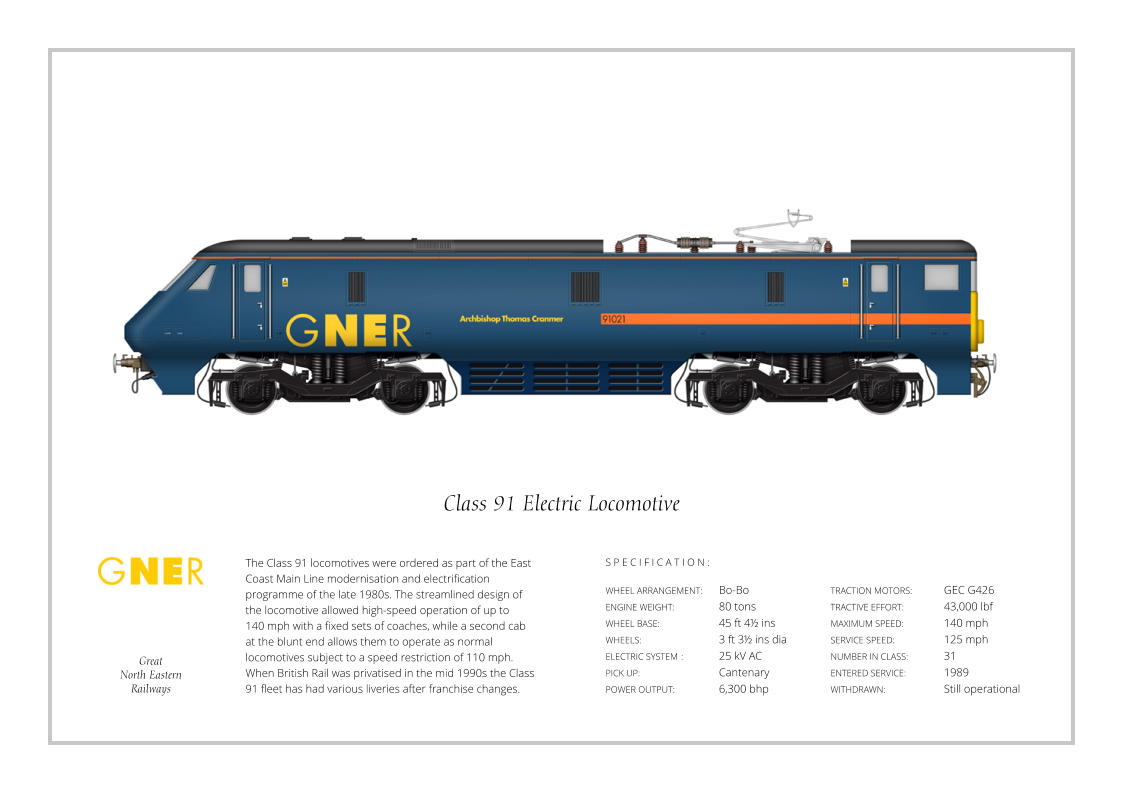

S P E C I F I C A T I O N : The Class 91 locomotives were ordered as part of the East Coast Main Line modernisation and electrification programme of the late 1980s. The streamlined design of the locomotive allowed high-speed operation of up to 140 mph with a fixed sets of coaches, while a second cab at the blunt end allows them to operate as normal locomotives subject to a speed restriction of 110 mph. When British Rail was privatised in the mid 1990s the Class 91 fleet has had various liveries after franchise changes. WHEEL ARRANGEMENT: Bo-Bo ENGINE WEIGHT: 80 tons WHEEL BASE: 45 ft 4½ ins WHEELS: 3 ft 3½ ins dia ELECTRIC SYSTEM : 25 kV AC PICK UP: Cantenary POWER OUTPUT: 6,300 bhp TRACTION MOTORS: GEC G426 TRACTIVE EFFORT: 43,000 lbf MAXIMUM SPEED: 140 mph SERVICE SPEED: 125 mph NUMBER IN CLASS: 31 ENTERED SERVICE: 1989 WITHDRAWN: Still operational S P E C I F I C A T I O N : Class 91 Electric Locomotive Great North Eastern Railways

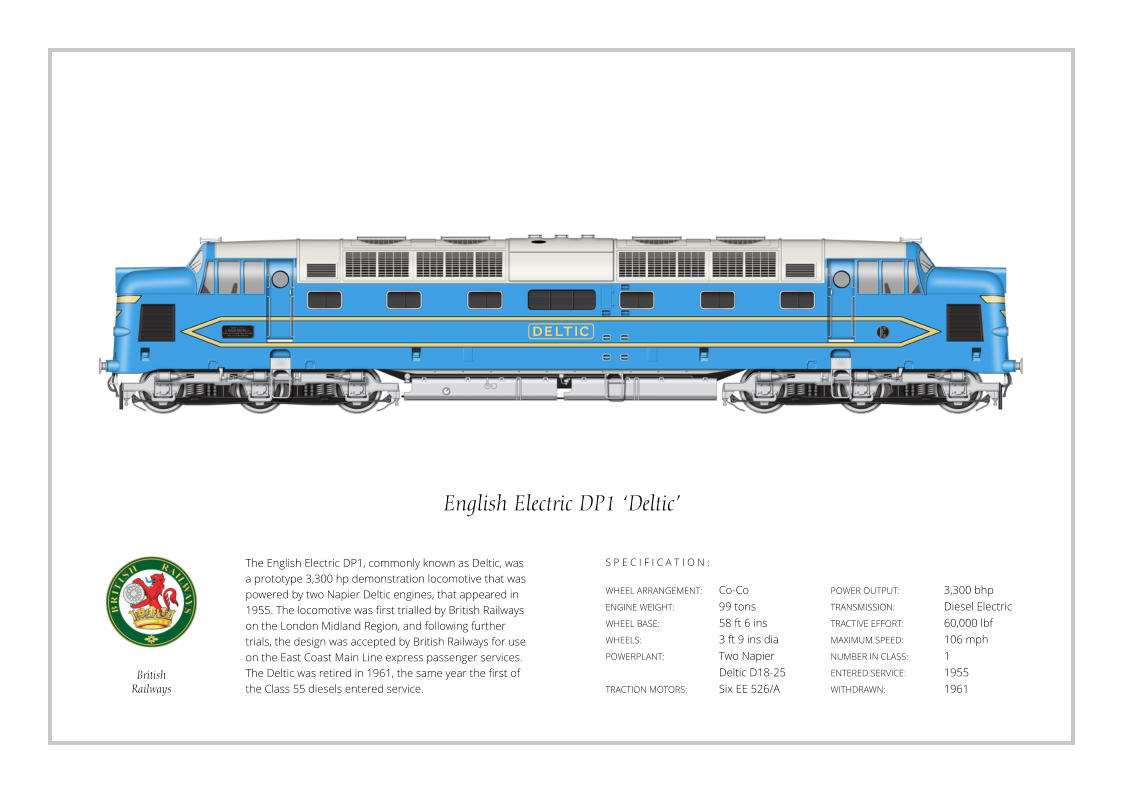

The English Electric DP1, commonly known as Deltic, was a prototype 3,300 hp demonstration locomotive that was powered by two Napier Deltic engines, that appeared in 1955. The locomotive was first trialled by British Railways on the London Midland Region, and following further trials, the design was accepted by British Railways for use on the East Coast Main Line express passenger services. The Deltic was retired in 1961, the same year the first of the Class 55 diesels entered service. WHEEL ARRANGEMENT: Co-Co ENGINE WEIGHT: 99 tons WHEEL BASE: 58 ft 6 ins WHEELS: 3 ft 9 ins dia POWERPLANT: Two Napier Deltic D18-25 TRACTION MOTORS: Six EE 526/A POWER OUTPUT: 3,300 bhp TRANSMISSION: Diesel Electric TRACTIVE EFFORT: 60,000 lbf MAXIMUM SPEED: 106 mph NUMBER IN CLASS: 1 ENTERED SERVICE: 1955 WITHDRAWN: 1961 S P E C I F I C A T I O N : English Electric DP1 ‘Deltic’ British Railways

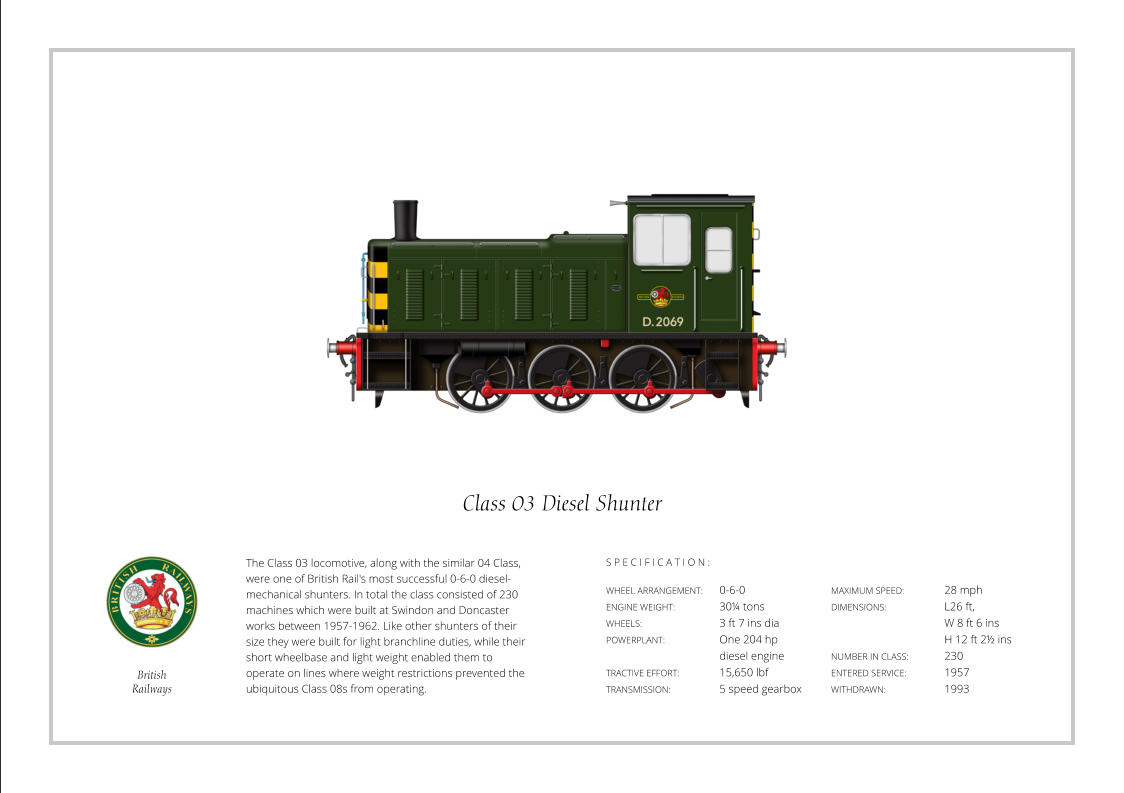

The Class 03 locomotive, along with the similar 04 Class, were one of British Rail's most successful 0-6-0 diesel-mechanical shunters. In total the class consisted of 230 machines which were built at Swindon and Doncaster works between 1957-1962. Like other shunters of their size they were built for light branchline duties, while their short wheelbase and light weight enabled them to operate on lines where weight restrictions prevented the ubiquitous Class 08s from operating. WHEEL ARRANGEMENT: 0-6-0 ENGINE WEIGHT: 30¼ tons WHEELS: 3 ft 7 ins dia POWERPLANT: One 204 hp diesel engine TRACTIVE EFFORT: 15,650 lbf TRANSMISSION: 5 speed gearbox MAXIMUM SPEED: 28 mph DIMENSIONS: L26 ft, W 8 ft 6 ins H 12 ft 2½ ins NUMBER IN CLASS: 230 ENTERED SERVICE: 1957 WITHDRAWN: 1993 S P E C I F I C A T I O N : Class 03 Diesel Shunter British Railways
